- Type:Polypropylene Film Capacitor
- Application:Lighting
- Package Type:Through Hole
- Tolerance:+-10%
- Brand Name:KNSCHA
- Rated Voltage:275VAC 305VAC 310VAC
- Operating Temperature:-40°C~ +110°C
- Safety Approvals:VDE ENEC10 UL CUL CQC KC
- Capacitance Tolerance:K+-10% M+-20%
- Insulation Resistance:CR≤0.33μF, I.R≥15,000MΩ
- Dissipation Factor:1.0μF≤CR≤10μF≤0.3% (1KHz,20℃)
- Voltage Proof:4.3UR DC /5s
- Material:Metallized Polypropylene Film
- Terminal:Wires
- Other names:X2 Metallized Polypropylene Film Capacitor

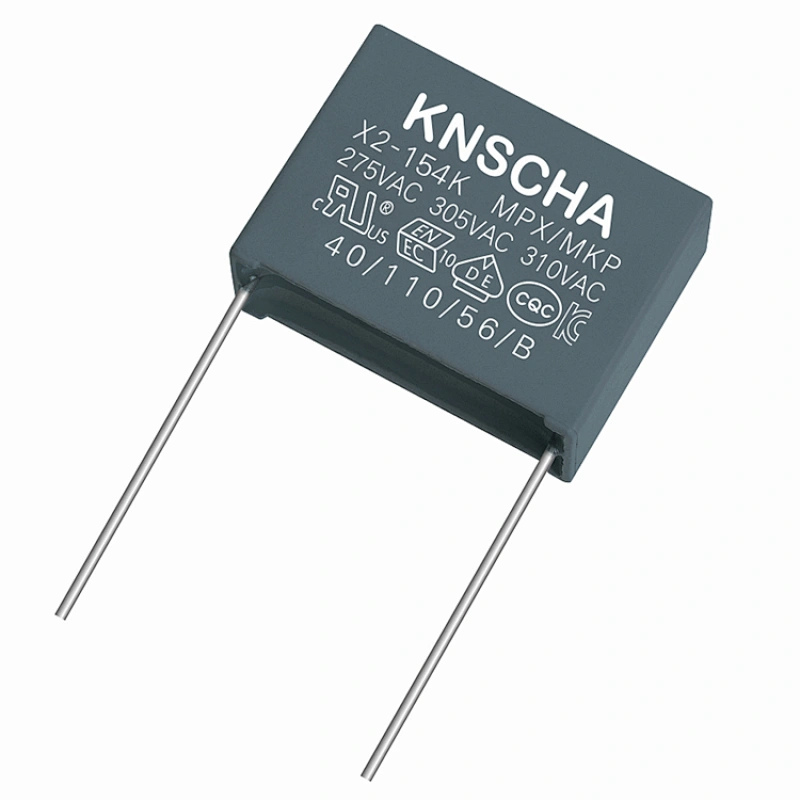

MPX/MKP X2 Metallized Polypropylene Film Capacitor (310VAC) Features
- Non-inductive, (UL940V-0) plastic case sealed with epoxy resin.
- Used in across-the-line,interference suppression circuit
- Class X2 safety capacitors for 310VAC.
- Provides interference suppression capacitor with VDE, ENEC ,CUL,CQC,KC and UL approvals.
- Short delivery, some items have stock available.
- High quality commitment, good prices support.
- Ammo Tape Pack, Cut leads, Long leads are available.
- Fast sales response for cross, quotation.
| AJC Capacitors Company | Kemet (Arcotronics) | Epcos | Pilkor | Evox Rifa |
| MPX/MKP Class X2 | R46 | B81 130 | PCX2 337 | PHE 840M |
| (275VAC 305VAC 310VAC) | B32921~B32924 | PCX2 339 | PHE 840E | |
| AJC Capacitors Company | Vishay | Wima | Iskra | Panasonic |
| MPX/MKP Class X2 | MKP 3382 | MP3 X2 | KNB 153X | ECQU |
| (275VAC 305VAC 310VAC) | MKP 3392 | MKP X2 | KNB 156X |
Cross reference are subject to change without notice. For detailed specification, please refer to our datasheet only.
MPX/MKP X2 Metallized Polypropylene Film Capacitor
(275CAC 305VAC 310VAC) Specifications
| Operating Temperature | -40°C~ +110°C |
|---|---|
| Voltage Rating | 275VAC 305VAC 310VAC |
| Safety Approvals | ENEC, VDE, UL,cUL,KC,CQC |
| Capacitance Range | 0.001 ~ 4.7μF |
| Capacitance Tolerance | std ±10% (K) |
| Insulation Resistance | CR≤0.33μF, I.R≥15,000MΩ CR>0.33μF, I.R≥5,000S , (20℃,100V,1min) |
| Dissipation Factor | 0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃) 0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃) 1.0μF≤CR≤10μF≤0.3% (1KHz,20℃) |
| Voltage Proof | 4.3UR DC /5s |
Send Message
Related Products
Model NO. X2 105K 310VAC

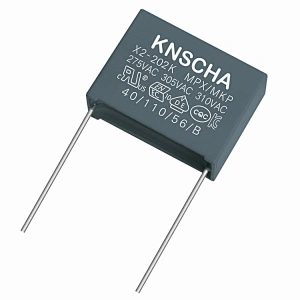

Model NO. X2 202K 305V
